FOR SALE IS ONE

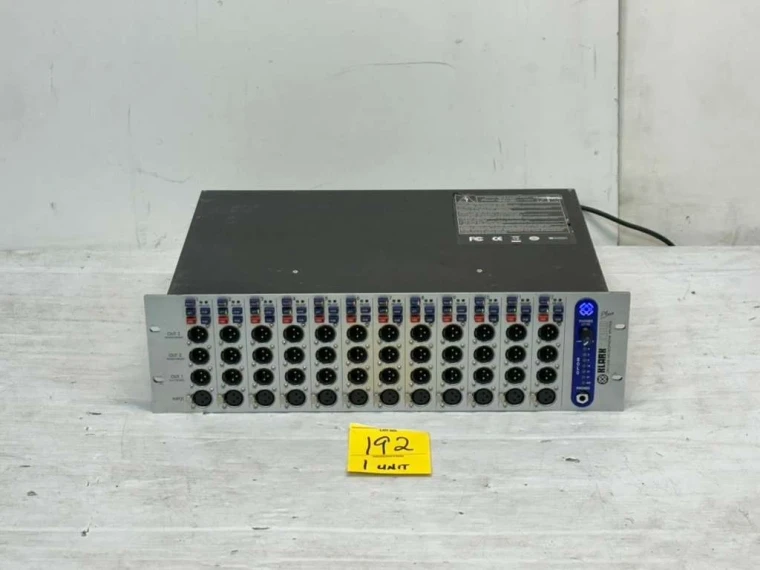

Klark Teknik DN1248 PLUS 3RU Microphone Splitter #192
CONDITION DESCRIPTION
This unit is in good working order and good condition,
this unit may have scratches, scuff marks, dents, and other cosmetic blemishes from
normal use and age. These units has not been opened or
disassembled. Sorry, no other parts, wiring or accessories included.
PLEASE CONTACT US FOR ADDITIONAL PICTURES OR ANY OTHER QUESTIONS
IF NEEDED.
SPECS
Inputs
Two parallel connected female XLR connectors, one on the front panel and the rear panel.
Input Impedance > 2kΩ
CMRR > -100dB @ 100Hz to 10kHz
Equivalent input noise < - 100dBu @ unity gain
Connectors 3 pin female XLR (external), 3 way terminal strip (internal)
Signal present level > - 25dBu
Signal clip level > + 21dBu
Outputs
Electronically balanced - one output with one front and one rear panel male XLR connectors, one output with one rear panel male XLR connector only
Source impedance 50 Ω
Min Load 600 Ω
Max Level > + 21dBu @ 1kHz
Connectors 3 pin male XLR (external), 3 way terminal strip (internal)
Transformer balanced & isolated - one male XLR connector on the front panel for each output
Source impedance 70 Ω
Min Load 600 Ω (-3dB level loss into 200Ω )
Max Level + 18dBu @ 1kHz
Connectors 3 pin male XLR (external), 3 way terminal strip (internal)
Performance
Electronically balanced outputs
Frequency response + 0 / -0.5dB 20Hz to 20kHz
Distortion (THD+N) < 0.01 % @ 1kHz +4dB
Transformer balanced & isolated outputs
Frequency response + 0 / -1.0dB 20Hz to 20kHz
Distortion < 0.04 % @ 1kHz +4dB
Terminations
Audio Inputs / Outputs 3 pin XLR
Power IEC
Power Requirements
Voltage 110 to 240V ± 10% 50/60Hz<60W
