FOR SALE IS ONE

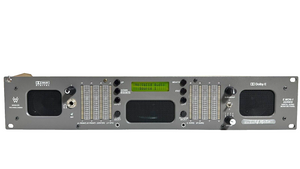

Wohler AMP2-E8 Series 8Ch Digital Audio Monitor Panel #1010 #1011 #1012
CONDITION DESCRIPTION
These are used units that have scratches and minor cosmetic blemishes
from normal use and age. These units have not been opened or disassembled
and we do not offer tech support for this unit. Only items shown in
pictures are included. Sorry, no other parts, wiring or accessories included.
SPECS
Level meters 8 x 53 segment
Level meter scale 0 to -66 dB
Level meter threshold 0, +4, +6 or +8dBv: switch selectable
Level meter dynamics (AES) simultaneous VU & PPM
Midscale resolution 1 dB
Frequency response (1/6 octave) 80Hz - 16kHz (±5 dB) (-10dB @ 40Hz, 20kHz)
Analog input impedance >40 k W balanced
Analog reference +8, +6, +4, or 0 dBu
Digital reference -20, -18, or -9 dBFS
AES/EBU input termination 110 balanced, 75 unbalanced
HD-SDI input termination 75 unbalanced
Peak acoustic output at 2 feet 104dB SPL
Magnetic shielding <0.8 gauss any adjacent surface
Hum and noise better than -68dB below full output
Electrical distortion <0.15% at any level below limit threshold
Acoustic distortion 6% or less worst case frequencies above
140Hz including cabinet resonance, typically < 1.5%
Power Requirements Power to the unit is 24V DC, 3.0 A. The external
power supply then connects to mains power (100 to 240 VAC ± 10%, 50/60Hz.
Power Consumption 60W
Dimensions (W x H x D) 3.5 x 19 x 12”
Net Weight 22 lbs
SHIPPING INFORMATION
Our focus is to offer reliable, personalized customer service and earn the continued trust and loyalty of our customers. We provide FREE local pickup and we ship via STANDARD GROUND to the 48 contiguous states on most items. (This does not include AK, HI, PR or the Virgin Islands). However, we offer great shipping rates to those states and territories and all Caribbean Islands. Please note that we do not ship to any P.O. boxes. To ship a freight order to a residential address, there will be a charge of $75 fee and a lift gate fee of $75. Freight shipments that are delivered to a limited access areas such as schools, hospitals, construction sites, gated communities, airports, churches, storage units or any other restricted areas will also be charged a fee of $75. These fees are in addition to the shipping fee listed. Ground shipments will take between 3-5 business days and freight shipments will take between 3-7 business days to ship from our warehouse. Lastly, items that are being sold AS IS OR AS PARTS IS FINAL SALE AND CAN NOT BE RETURNED. Our staff will work diligently to ensure that all orders arrives in a timely manner. Please understand that some factors such as weather, high postal traffic and the performance of the shipping companies are outside of our control.
RETURN INFORMATION
After receiving your order, as the buyer, you must contact us within 3-4 business days with any problems. When returning your order, it must be returned in the original packaging as well as the item that you purchased. Return shipping will be paid by the buyer. Depending on availability, we will exchange a defective item for the same item within the 3-4 business day period. Partial refunds are also available, if the buyer chooses to keep the item and repair it themselves. WE HAVE A 20% RESTOCKING FEE. Filing a claim should be reserved as a last resort to solving an issue. Please give us a chance to solve any issues that you may have for any reason before leaving feedback.
